Codex usage tool

Generate self-contained, offline Codex usage reports from local .codex folders, shared usage-data.json files and authenticated ChatGPT/Codex dashboard APIs
Combine usage across machines and surfaces, reconciling authoritative backend totals with local rollout details : models, reasoning effort, cached input, output tokens, cost estimates, themes, surfaces and cloud task metadata

What it produces

• Interactive usage-report.html with Codex-anchored 7d/30d/90d ranges, payment-aware all-time coverage, token heatmaps, smooth trend charts, token-composition drilldowns, subscription ROI, WHAM dashboard breakdowns, daily usage attribution by feature/model/surface/turn start, 5-hour and weekly plan-limit history, top chats, tool activity, messages by model/surface, local-session and prompt-cache metrics, coverage and attribution diagnostics, hover details and per-chart SVG/PNG downloads
• Static SVG/PNG heatmaps and charts for daily, weekly and cumulative views, plus the available attribution, tool activity and message charts
• Version-4 usage-data.json with the normalized dataset, event identities, source manifests, local chat metadata, new account analytics, privacy-filtered payment facts, distinct session counts, attribution completeness/certainty, local coverage, parse-cache statistics and merge diagnostics used by the report
• cost-estimate.csv for daily token and cost analysis
• Reports styled from the first selected Codex home theme, including named theme fallbacks when the config only stores a theme name

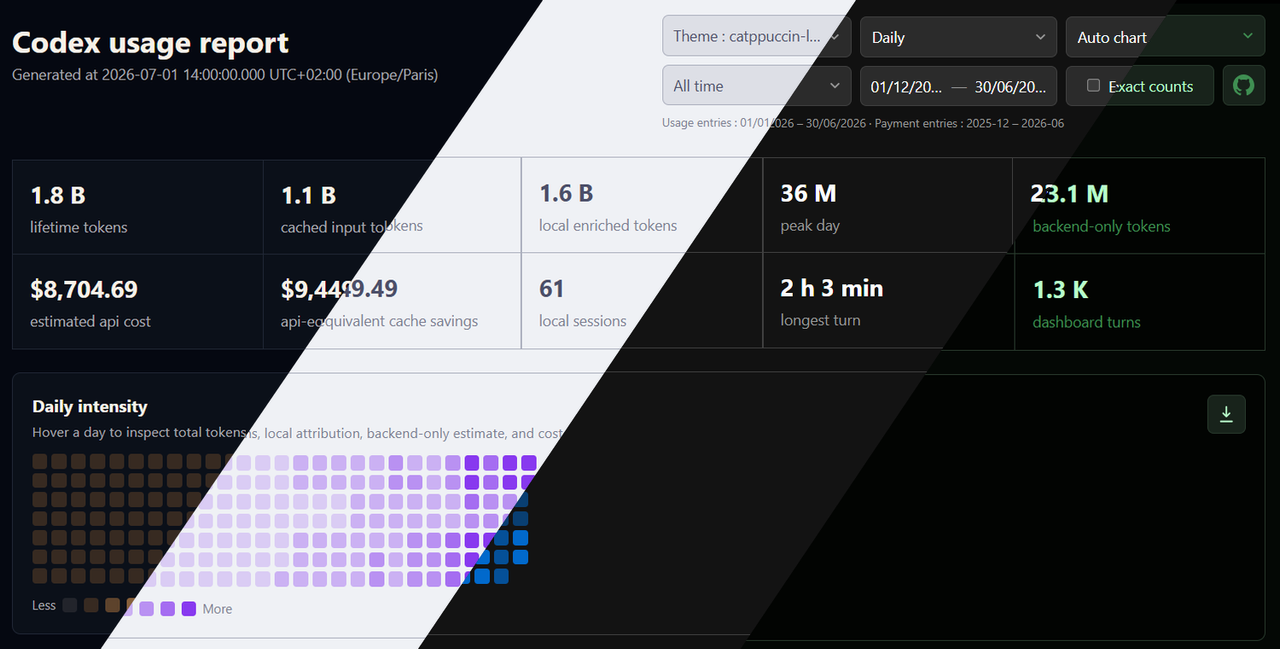

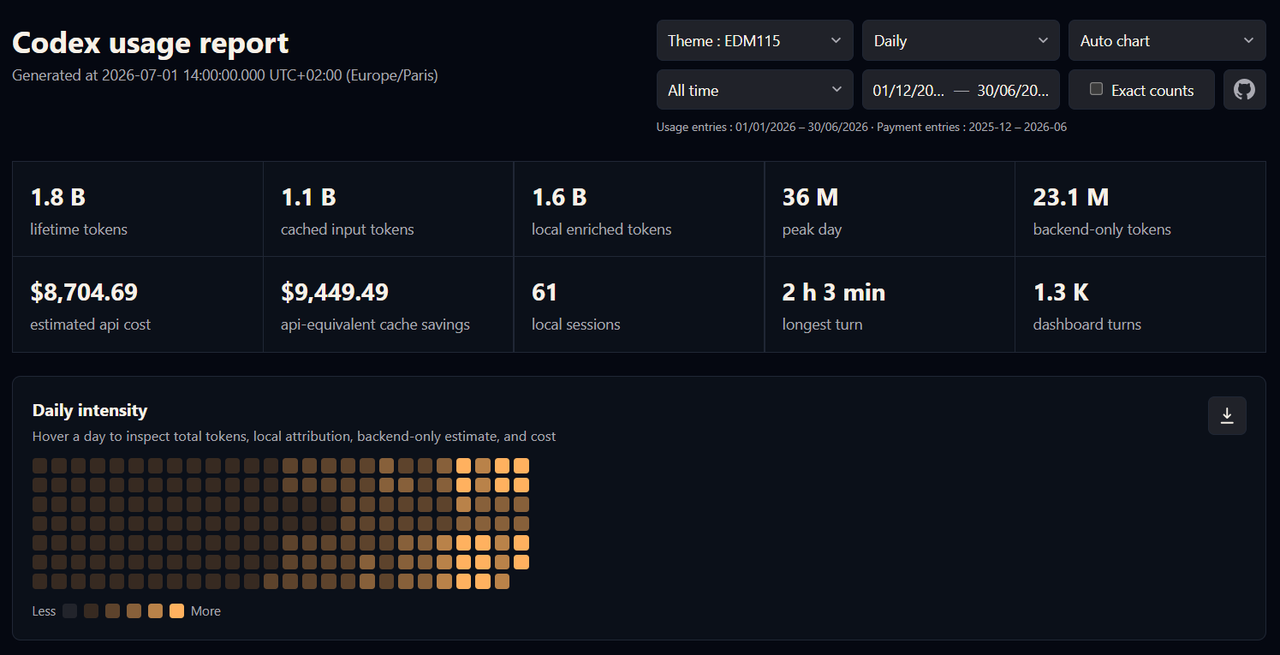

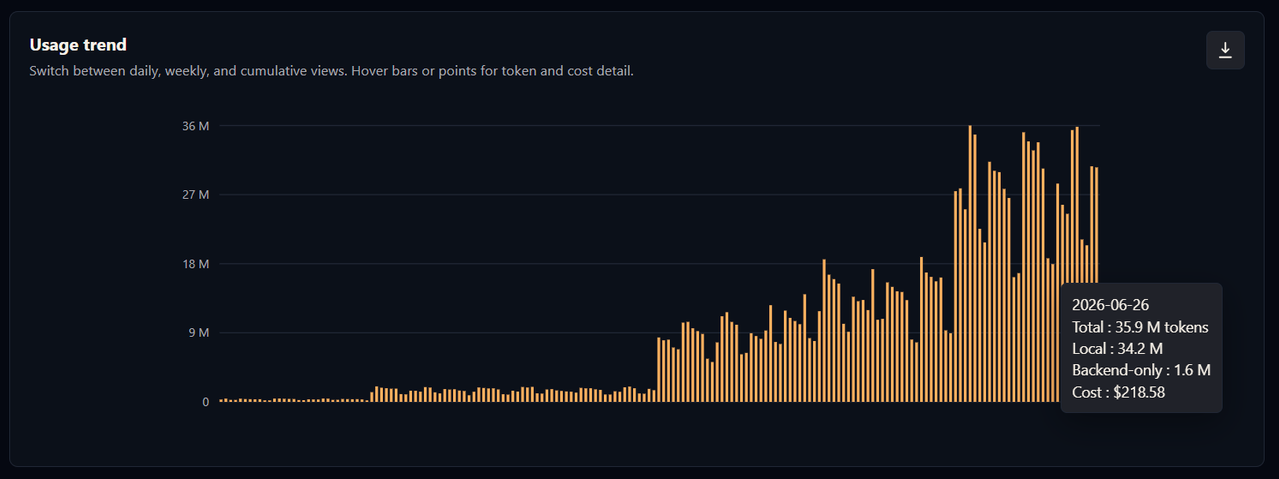

Preview

Generated images : examples
Run bun demo:image to regenerate demo.png from the current deterministic demo report. Google Chrome captures a 1280 × 720 viewport at 1.5× density, producing a Full HD 1920 × 1080 image with Daily, Auto chart, All time and abbreviated counts in the EDM115, catppuccin-latte, codex-dark and matrix-dark themes. Set DEMO_CHROME_PATH if Chrome is outside its usual location. The four source screenshots are saved in output/demo-capture/

Data sources

The report combines these sources :

• Profile API totals from /profiles/me : authoritative daily total token usage when available
• Local .codex enrichment from streamed rollout JSONL files and SQLite thread databases : model, token breakdown, reasoning effort, source home, distinct sessions, prompt-cache savings at API-equivalent prices, attribution quality and local cost context
• Generated usage-data.json inputs : portable normalized datasets with source and event identities that can be rendered again or combined with other machines without copying their .codex folders
• WHAM dashboard analytics from the Codex cloud dashboard : model turns, surface tokens, current and archived task samples, PR metadata, task diff summaries, daily attribution, plan-limit history, tool activity, messages and per-thread plan usage when local thread IDs are available
• Payment transaction history from /payments/transaction-history when a live Codex home provides an authenticated account ID : paid USD transactions, including subscriptions, manual credit purchases and automatic credit reloads, used only for the ROI comparison
• Explicit monthly payment overrides from --payments-json : a root JSON object such as {"2026-06":24,"2026-07":119.87} whose values are USD amounts
• Pricing metadata from the live OpenAI pricing reference, combined with a bundled effective-dated history and models.dev fallback rows

hybrid mode keeps backend totals authoritative and uses local files to explain the visible portion. Backend-only tokens remain included
Local enriched tokens can exceed total tokens when the backend has not processed that day’s usage yet. The Codex App may likewise show 0 tokens until the next day

Installation

git clone https://github.com/EDM115/codex-usage-tool.git
cd codex-usage-tool
bun install --frozen-lockfile

Requirements :

• Bun 1.3.3 or newer
• A readable Codex home, usually ~/.codex on macOS/Linux or %USERPROFILE%\.codex on Windows or at least one generated usage-data.json
• Optional network access for Profile, WHAM dashboard, payment history, theme and pricing refreshes (make sure you’re authenticated through the Codex CLI)

Quick start

bun usage generate --out ./usage

Then open usage/usage-report.html or serve it with Bun while iterating :

bun usage/usage-report.html

Bun serves the generated report at http://localhost:3000/

Updates

This tool is regularly updated with new features, bug fixes & support for newer models. Simply pull the latest changes :

git pull
bun install --frozen-lockfile

Multiple Codex homes

Pass multiple .codex folders to combine usage across desktops, laptops, WSL profiles and backups, adding local detail unavailable in backend totals

bun usage generate --codex-home "C:\Users\EDM115\.codex" --codex-home "D:\Backups\Laptop\.codex" --codex-root "E:\OldMachines\DesktopProfile" --from 2026-01-01 --to 2026-06-30 --out ./usage

The tool automatically checks .codex directly inside the current user’s home directory on Windows, macOS and Linux, and includes CODEX_HOME when set. Existing automatic homes are added alongside explicit homes, roots and JSON inputs, other user profiles and nested directories are not scanned. Equivalent paths and symlinks to the same directory are included once, with explicit inputs taking precedence. Use --no-auto-discovery to disable both automatic checks while keeping explicit inputs
--codex-home accepts a .codex directory. --codex-root accepts either a .codex directory or a parent directory that contains one
Each home resolves its own credentials. Profile, WHAM and payment APIs run once per distinct ChatGPT account, while multiple homes for the same account contribute local enrichment without duplicating backend totals. Requests keep their account headers and thread queries separate, and live progress includes the home name when several accounts are active. Generated JSON retains opaque account scopes so later merges sum different accounts and deduplicate snapshots from the same account. Plan-limit percentages remain separate for each account
Payment caches remain separate per account, keep their original fetch timestamps and use the existing seven-day freshness and subscription-renewal rules. Imported histories must record a matching account scope to establish cache freshness, an older unscoped JSON can contribute historical invoices but cannot replace a current API fetch merely because its home path matches. Monthly --payments-json overrides apply once to the combined report. Legacy profile and WHAM records can be associated with an account when their source homes map uniquely to one known account, that migration assumes the home’s historical ownership remained stable. Unknown or conflicting ownership uses historical fallback coverage and reports a diagnostic

Authentication

Credential resolution follows Codex’s cli_auth_credentials_store setting : file reads the home’s auth.json, keyring reads the selected OS store, auto tries the OS store before falling back to the file and ephemeral credentials belong to the running Codex process and cannot be retrieved by this tool. The default is file. Local managed settings, system requirements and forced macOS preferences take precedence over home settings, cloud-delivered requirements are not loaded
Direct keyring storage uses macOS Keychain, Secret Service through secret-tool on Linux/BSD or Windows Credential Manager through PowerShell. Codex’s secret_auth_storage feature instead uses the encrypted secrets/codex_auth.age file and its OS-stored passphrase, selected-profile feature settings are respected. Credentials are read in memory without refreshing tokens, changing stores or writing decrypted files. --no-api skips OS credential-store lookups
Stored API-key logins and Codex’s CODEX_API_KEY authentication override are recognized. OPENAI_API_KEY by itself does not replace stored ChatGPT authentication, matching Codex’s auth-manager resolution. API-key-only runs use local history automatically and skip ChatGPT profile, WHAM and payment endpoints, no --no-api flag is required. Their token and cost reports use recorded local usage and the pricing table, and do not fetch API-platform usage or invoices. Mixed reports add API-key local usage to ChatGPT backend totals. API keys, access tokens, refresh tokens and raw account IDs are excluded from generated authentication metadata
When several homes have credentials for the same account, the resolver prefers an unexpired token and a newer recorded refresh, retaining alternative credentials for retries after HTTP 401. A failed account remains visible through diagnostics while available accounts and local history can still be reported

Share and combine generated JSON

--usage-json accepts a previous run’s usage-data.json, can be repeated and can be combined with explicit Codex homes or roots. Only this portable file needs to move between machines. Generation also merges event identities and dated WHAM buckets from an existing --out/usage-data.json before replacing it, preserving API history no longer returned. --no-history ignores that saved output. Back it up before moving the output directory or changing sources : retaining historical API buckets requires the previous JSON

Rebuild every JSON, CSV, SVG, PNG and HTML artifact from one shared dataset :

bun usage generate --usage-json "D:\Shared\usage-data.json" --no-auto-discovery --out ./usage

Combine several shared datasets with this machine’s local Codex history :

bun usage generate --usage-json "D:\Laptop\usage-data.json" --usage-json "D:\Workstation\usage-data.json" --out ./usage

--usage-json keeps automatic home discovery enabled, add --no-auto-discovery to rebuild only the supplied JSON or explicit homes. Current portable files deduplicate local events and sources by event identity. WHAM daily buckets merge by UTC date, with the newest fetched snapshot winning overlaps, plan periods merge by period ID and top chats by thread ID. Aggregate totals are rebuilt from dated buckets to avoid counting the same account per machine
Legacy aggregate-only JSON is accepted and migrated in memory without rewriting the source. Exact event overlap cannot be recovered. If source manifests overlap, the later aggregate is skipped and legacyOverlaps appears in JSON, CLI warnings and HTML
Version-2 files upgrade in memory to version 4 with an unavailable payment block, sources are never rewritten. Since version 3, API payment facts contain only a SHA-256 transaction fingerprint, month, USD amount, payment day and subscription marker when available. The original payment-fetch timestamp is preserved across report regeneration. Fingerprints deduplicate invoices across inputs, distinct paid transactions in a month are summed. Imported monthly overrides use first-input precedence. Current --payments-json values override all imported values for that month, including an explicit zero
Portable JSON retains its timezone because daily buckets are already computed. All combined files and any explicit --timezone must match. Active pricing reprices each daily model/service-tier breakdown using that date’s alias, default model and effective price before rebuilding multi-day totals. When every portable input has event-level data, --from and --to filter dated local events, daily WHAM buckets, tool activity, top chats with known update dates and overlapping plan periods in generated JSON. Aggregate-only legacy inputs cannot be reliably re-filtered
Rollout .jsonl and compressed .jsonl.zst files are streamed, zstd archives are decoded in memory without creating decompressed files. Parsed event manifests are cached in the gitignored .cache/codex-usage-tool directory using versioned file-state keys. Unchanged files reuse the cache, size or modification-time changes, including growing active transcripts, trigger a full re-read. Cached parse diagnostics are replayed so warm scans still disclose partial coverage. Replaced or removed rollout files are pruned from the current cache on all platforms. Major tool versions can change the cache versionning, check for older versions from time to time to free up space

Interactive ranges, composition & ROI

Date ranges and counts

The report opens on 30 days ending at the newest Codex daily entry, not the browser date. The 7d/30d/90d presets use that anchor regardless of payment dates, their calendar starts are not clamped
All time spans the earlier of the first Codex day or oldest payment month’s first day through the later of the last Codex day or newest payment month’s last day. Exact usage-day coverage and month-precision payment coverage are shown separately
Click either range boundary to open an unbounded native calendar. Manual edits select Custom and can extend beyond the discovered horizon. All interactive charts, tooltips, breakdowns and downloads share the selected range
Exact counts toggles integer counts in tooltips and visible rows between abbreviated and grouped exact values. Money, percentages, fractional credits and dates retain their formats

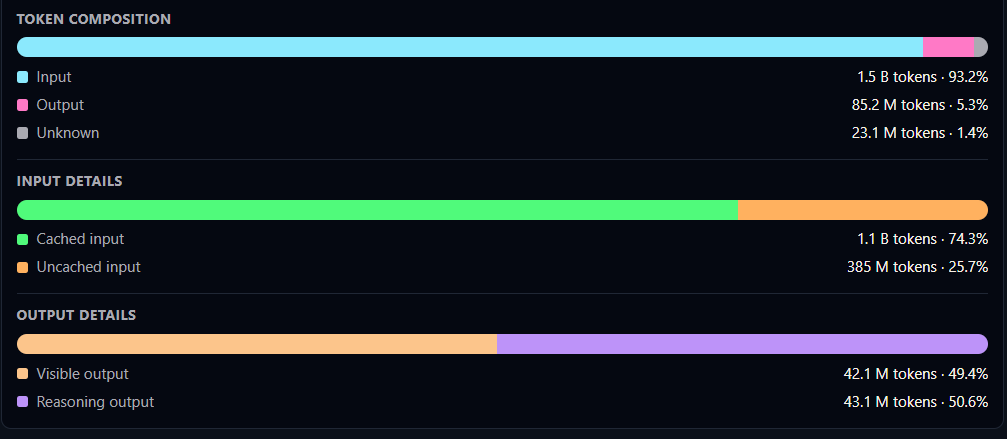

Token composition

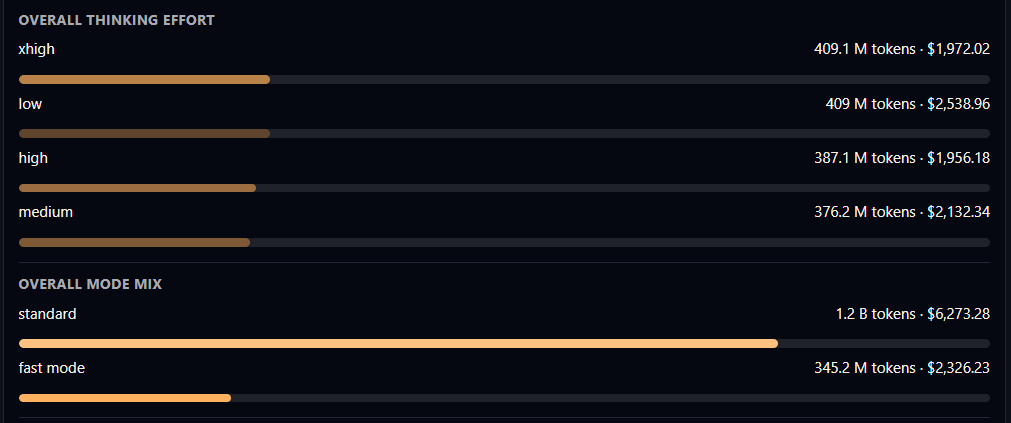

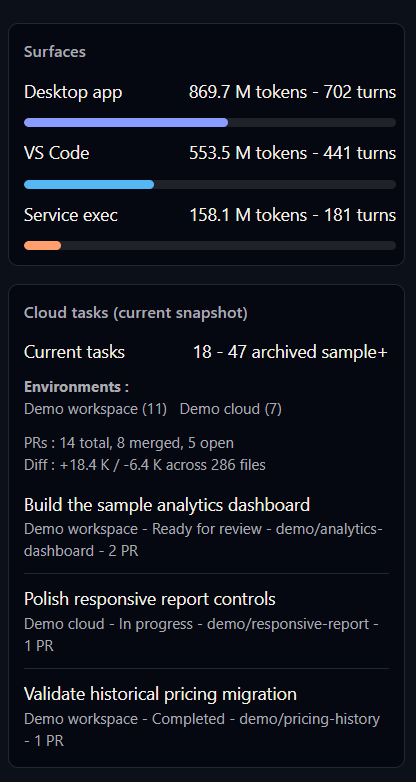

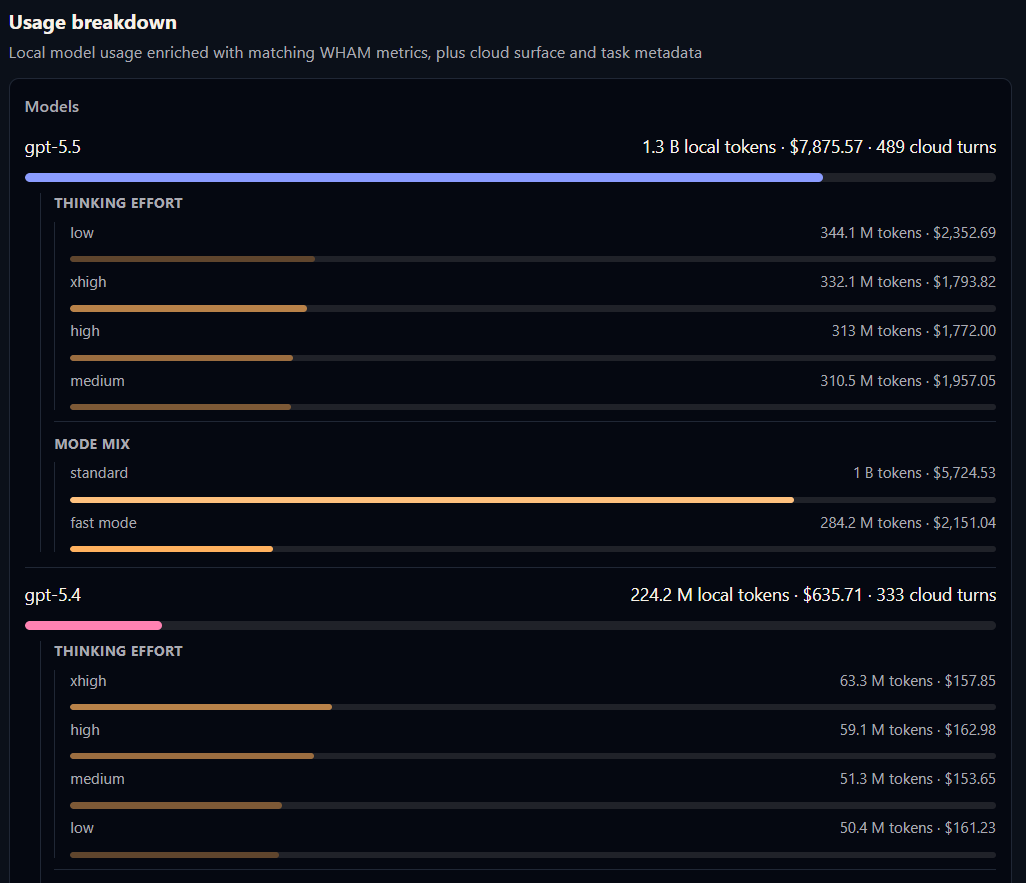

Usage Breakdown shows Token composition (local input, local output, unknown), Input details (cached/uncached) and Output details (visible/reasoning). Unknown tokens are never assigned invented components : the tooltip separates backend-only tokens from residuals between local total and local input plus output. Malformed cached or reasoning subset counters are clamped and disclosed to prevent negative segments

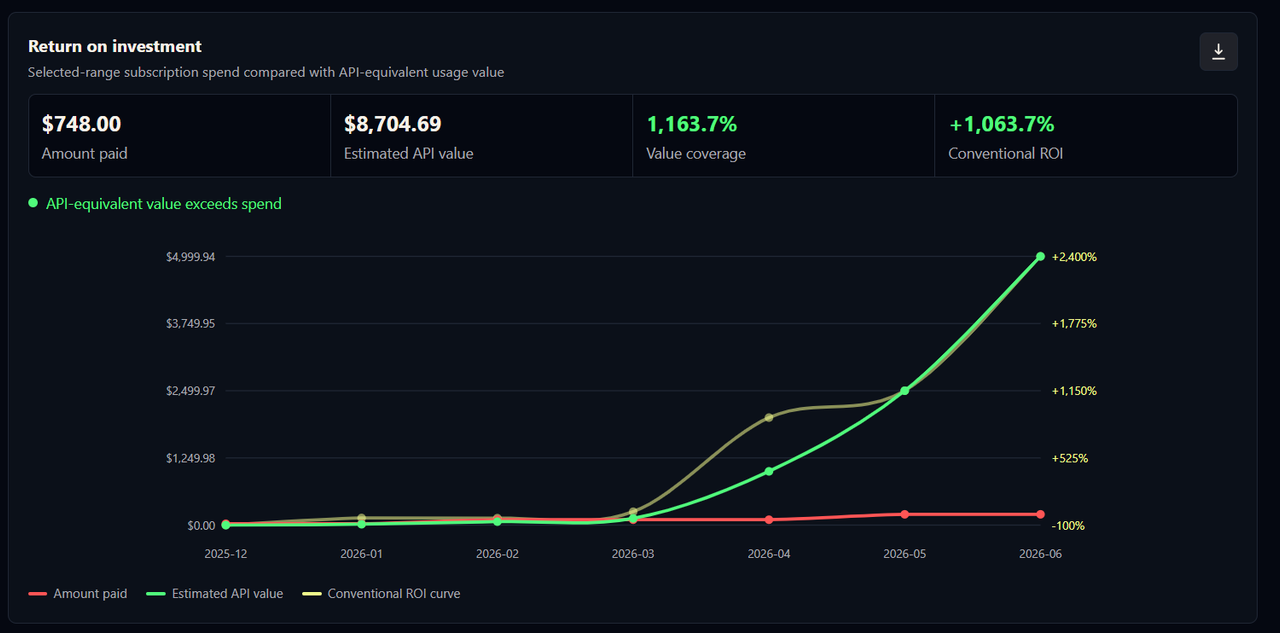

Return on investment

ROI compares selected-range subscription spend with estimated API-equivalent usage value. Partial months allocate monthly amount / calendar days in month per selected day

• Value coverage = estimated API value / amount paid * 100
• ROI = (estimated API value - amount paid) / amount paid * 100
• Both are N/A when selected spend is zero.
• Payment-only months before Codex usage remain in All time, with their spend, zero API value and -100% ROI.

The comparison uses cent-rounded amounts : green (#50fa7b) when API value exceeds spend, red (#ff5555) when spend exceeds value and yellow (#f1fa8c) at break-even. Smooth red spend and green API-value curves use the left money axis, a smooth yellow conventional-ROI curve uses the right percentage axis. Zero-spend months leave gaps in the ROI curve. Missing payment evidence shows as unavailable, not zero, partial API history retains a warning. SVG/PNG exports include the selected range, all three curves and both axes

Commands

generate   Collect data and write HTML, SVG, PNG, JSON and CSV outputs
collect    Collect data and write usage-data.json, usage-report.html and cost-estimate.csv only
help       Show CLI help (default)

Options

--codex-home <path>                        Add a .codex directory, repeatable
--codex-root <path>                        Add a parent directory containing .codex, repeatable
--usage-json <path>                        Add a generated usage-data.json, repeatable
--no-auto-discovery                        Skip automatic CODEX_HOME and current-user .codex discovery
--no-history                               Ignore an existing --out/usage-data.json instead of merging its history
--out <path>                               Output directory (default : outputs/codex-usage)
--from YYYY-MM-DD                          Inclusive date filter, unavailable with --usage-json
--to YYYY-MM-DD                            Inclusive date filter, unavailable with --usage-json
--timezone <tz>                            IANA timezone for local rollouts (default : Europe/Paris), JSON keeps its timezone
--source hybrid|backend|local              Default : hybrid, backend totals plus local enrichment
--profile-json <path>                      Use a saved /profiles/me JSON response instead of calling the API
--analytics-json <path>                    Use saved WHAM analytics JSON instead of calling the dashboard APIs
--sections <list>                          Comma-separated report sections (default : all), ex feature,turn or all,-chats
--refresh-payments                         Bypass the seven-day payment history cache
--payments-json <path>                     Override monthly USD spend with a {"YYYY-MM": amount} root object
--no-api                                   Do not call Profile, WHAM or payment APIs, explicit JSON files still load
--base-url <url>                           Backend base URL (default : https://chatgpt.com/backend-api)
--pricing-source openai|bundled|models.dev Default : OpenAI current pricing plus bundled effective-dated history
--pricing-json <path>                      Use flat current-date or effective-dated custom pricing JSON
--estimate-model <model>                   Explicit override for missing models, otherwise infer the historical primary
--no-png                                   Skip static PNG export and write SVG/HTML/JSON/CSV only
--silent                                   Hide action lines, file count and warnings, keep the progress bar and token summary
--theme <theme>                            Default : EDM115, can also be "config" for your `config.toml` one or any of the built-in Codex themes
--help                                     Show help

Output files

usage-report.html                              Interactive offline report
usage-data.json                                Normalized report dataset
cost-estimate.csv                              Daily token and estimated-cost table
heatmap-{daily,weekly,cumulative}.{svg,png}    Daily/weekly/cumulative token intensity heatmap
{area,bar}-{daily,weekly,cumulative}.{svg,png} Daily/weekly/cumulative token trend chart
usage-{feature,models,surfaces,turn}.{svg,png} Daily attributed usage charts when account data is available
{plugin,skill}-activity.{svg,png}              Daily account tool activity charts when available
messages-{model,surface}.{svg,png}             Daily account message charts when available

PNG export uses @resvg/resvg-js for static files. If the native renderer is unavailable, SVG and HTML outputs are still written

Authentication and privacy

Live API calls read auth.json from the first configured Codex home and send the access token only in request headers. Payments also require tokens.account_id. JSON-only runs do not discover local auth to fetch payments, use --payments-json for offline spend comparisons. --no-api disables live payment fetching and payment-cache reads but still loads explicit payment files. Complete payment API histories are cached for seven days in .cache/codex-usage-tool, scoped by a hash of the base URL and account ID, only normalized transaction facts are stored, without auth or raw IDs. --refresh-payments forces a fresh history after a credit purchase or plan change. A newer complete payment history from an imported usage JSON can satisfy the same seven-day window, its original payment-fetch timestamp takes precedence over the report generation date. Older JSONs fall back to their generation date because they have no fetch timestamp. Known subscription payment days shorten the window at the next expected renewal (monthly by default, yearly when consecutive invoices establish that cadence), with month-end days clamped to the last day of shorter months. Legacy histories without payment days use the seven-day limit until a fresh API response supplies them. Failed or partial responses are not cached, and explicit monthly overrides are reapplied on each run. Payment and profile requests overlap local parsing, WHAM requests start after local source discovery and profile data provide the date range and chat metadata
Generated reports, JSON, CSV, SVG, PNG and logs exclude access tokens, account IDs, raw transaction IDs, invoice URLs, pagination cursors and query-bearing payment URLs. Credit purchases and automatic reloads use the same /payments/transaction-history billing table as subscriptions, /wham/usage/credit-usage-events tracks consumption rather than dollar payments. Accepted transactions must be paid, positive, integer-cent USD amounts with valid timestamps, portable output replaces transaction IDs with SHA-256 fingerprints. API failures produce bounded, normalized warnings and fall back to readable local data. Use --profile-json, --analytics-json and --payments-json for reproducible offline reports

Sections and chat data

--sections accepts all and :

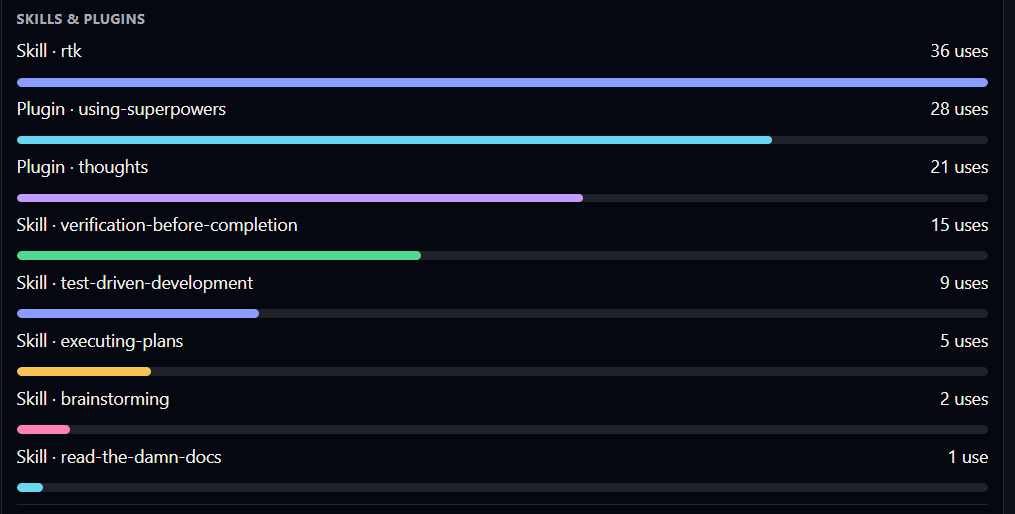

summary,intensity,trend,roi,models,surfaces,cloud,skills,thinking,mode,cyber,token,input,output,details,feature,turn,chats,limits-feature,limits-model,limits-surface,limits-turn,messages-model,messages-surface

Values apply in order : all,-chats selects everything except Top chats, a leading exclusion starts from all. Excluded sections and their dedicated embedded data are removed from HTML, not hidden with CSS
Excluding chats also removes local chat metadata and per-chat usage from HTML and usage-data.json, both include chat titles by default. cloud controls cloud task data in portable JSON, though HTML no longer has a Cloud tasks card. Archival JSON can retain other personal metadata : review it separately before sharing
Top chats uses the 100 most recently updated local roots, including portable sources from other machines. Limit usage comes from the account API, without local token-to-limit conversion. The date selector filters chats by update date. Repeated codex-auto-review and Untitled chat rows are grouped with a chat count
cyber reads each rollout turn’s payload.cyber_access_program, defaults missing/unknown values to standard and shows a breakdown only if the selected range includes Daybreak Blue or Daybreak Red usage

Account analytics

Daily attribution, workspace messages, plugin activity and skill activity are fetched in consecutive windows of up to 120 days across the report horizon. The HTML date selector filters displayed days, --from/--to bound collection and portable JSON. Plugin/skill requests ask for up to 500 categories per day. Local plugin calls use recorded tool metadata or plugin instructions for attribution, MCP namespaces alone are left unresolved, with no connector allowlist. [I/X] tracks WHAM requests. Existing output JSON preserves dated buckets no longer returned by the API
Plan usage history reads used_basis_points and category basis_points from /wham/usage/plan_limit_history?days=30, dividing by 100 for display. Live checks found only days=7 and days=30 accepted, both returned three weekly periods for the tested Plus account. Available periods, including five-hour periods, depend on the account/API. Turn-start rows cover Tasks only and may not sum to the full-period percentage
The daily total-usage API labels attribution values units: "percent". These determine relative day heights, legend shares divide each category by that day’s attribution total. They are not treated as plan-limit percentages. Messages use the analytics API’s daily turns counts

Themes

HTML and images use the first selected Codex home’s configuration. Explicit desktop colors take priority. For name-only themes, the tool tries upstream openai/codex definitions, then bundled palettes for common Codex themes

Development

For pricing-cache refreshes, see the pricing maintenance guide. It maps model entries, aliases, effective dates, parser formats, report colors, generated fixtures and validation to their files
Root demo.json is a deterministic, fully synthetic dataset covering local usage, cloud analytics, plan limits, top chats, tool activity, messages, capability, source, cache, attribution, payment and ROI views without user data. Refresh the tracked fixture after report-schema changes :

bun run demo

Generate a report from the serialized fixture :

bun run demo:report

This writes output/demo/usage-report.html, a self-contained report you can open, share or screenshot. output/ is gitignored, keeping generated presentation files out of Git

bun test
bun typecheck
bun usage generate --codex-home "C:\Users\EDM115\.codex" --out ./usage

Keep the HTML report self-contained. Cover renderer regressions with tests that extract and parse its executable script blocks

Notes on cost estimates

Costs are best-effort operational estimates, not billing statements. Explicit local models resolve through their usage-date aliases. For missing models or backend-only tokens, the tool selects the newest model released by that date and eligible as the primary Codex model. --estimate-model overrides this inference
Bundled model definitions start on documented release dates, price periods last until the next period for that model
Live pricing supplements this history. A fetched rate that differs from the active bundled rate starts on the fetch date, preserving older prices for older usage. Effective-dated custom JSON uses effectiveFrom (YYYY-MM-DD), legacy flat rows start on the report’s fetch date
Cached input, output, service tiers, long-context requests and backend-only tokens use the selected model’s usage-date price. Cache savings measure the API-equivalent difference between uncached and cached-input prices for the same dated model/tier, not a subscription refund. Official OpenAI billing exports remain authoritative for accounting
The pricing catalog preserves default 30-minute cache-write rates and separate 12-hour rates starting October 20, 2026. Local usage has no cache-write counts or lifetime split, so cost estimates cannot include those charges. Removed model rows retain their last published prices and tiers for recorded usage, historical support does not imply current API availability. Endpoint-specific uplifts are not inferred without endpoint evidence
